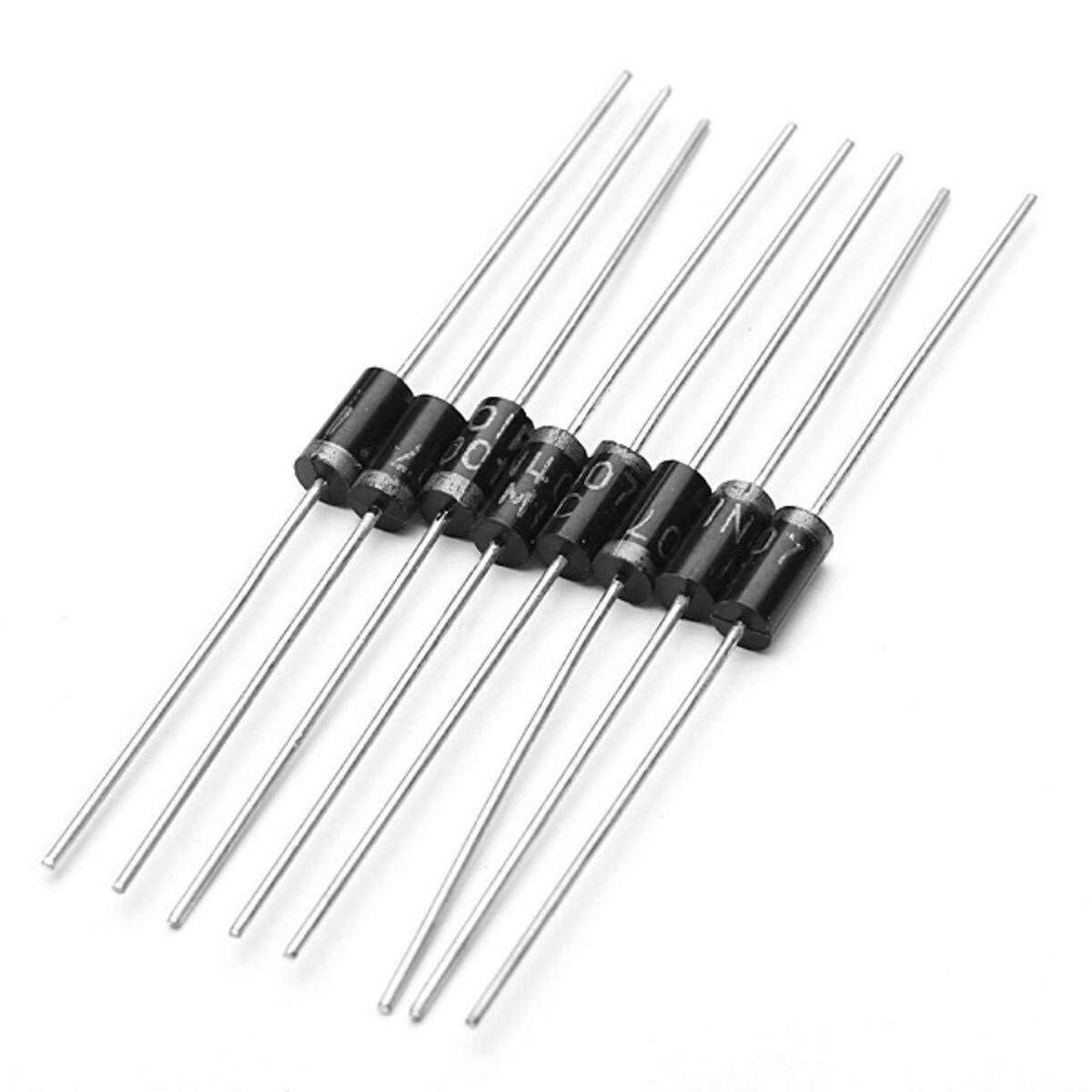

1N4007 Diode 1000V 1A General Rectifier Diode (1pcs)

Specification

• Product Name : Rectifier Diodes;
• Model : 1N4007
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-41
• Maximum Recurrent Peak Reverse Voltage : 1000 V
• Maximum Average Forward Output Current : 1 A
• Maximum Forward Voltage Drop per element at 1.0A DC : 1.1 V
• Operating and Storage Temperature Range : (– 65 to +175 °C)
• Weight :0.33 grams

Features:

• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Peak Repetitive Reverse Voltage: 1000V
• Average Rectified Output Current: 1A
• Low Forward Voltage Drop
• High Surge Current Capability
• Can be used to prevent reverse polarity problem – Half Wave and Full Wave rectifiers – Used as a protection device – Current flow regulators
