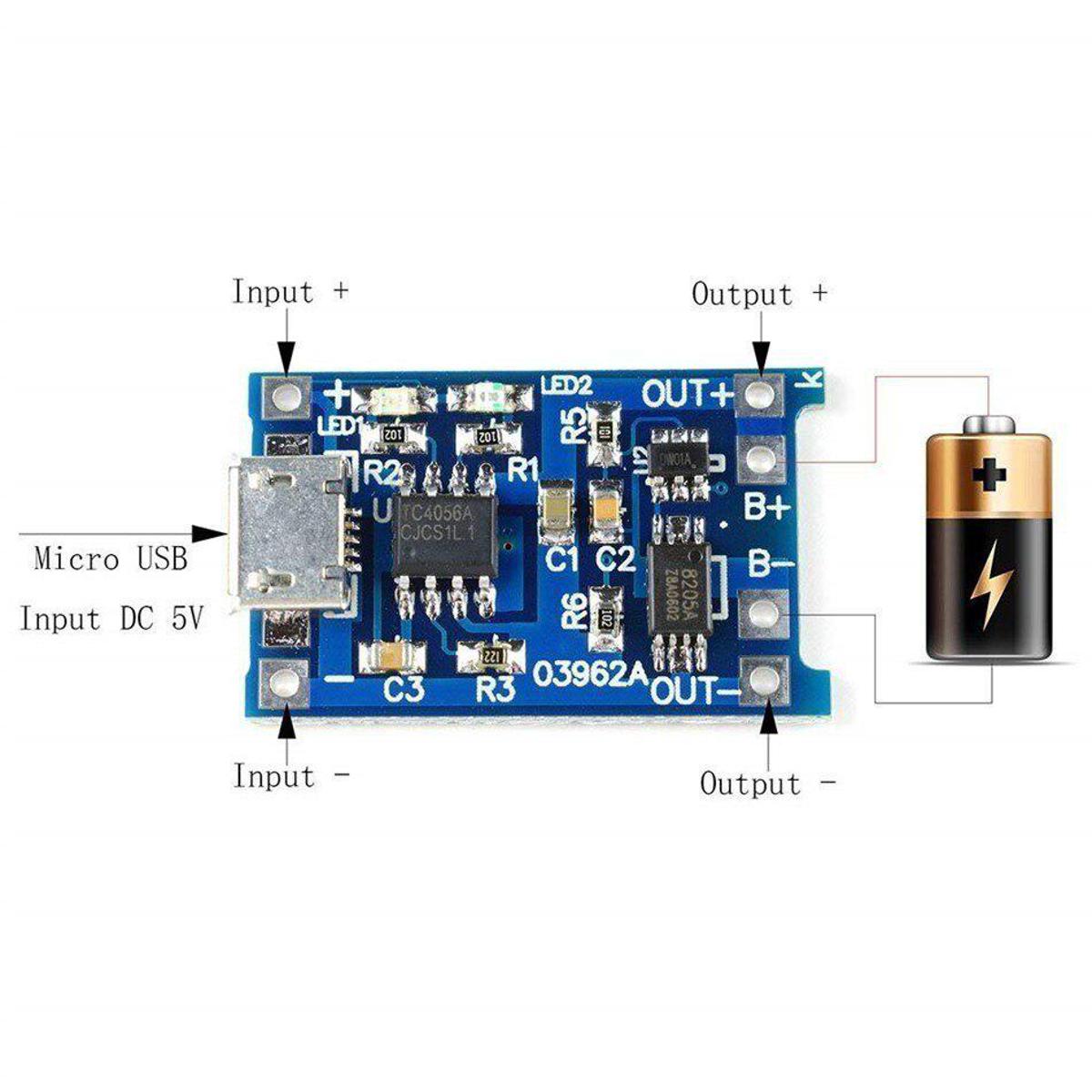

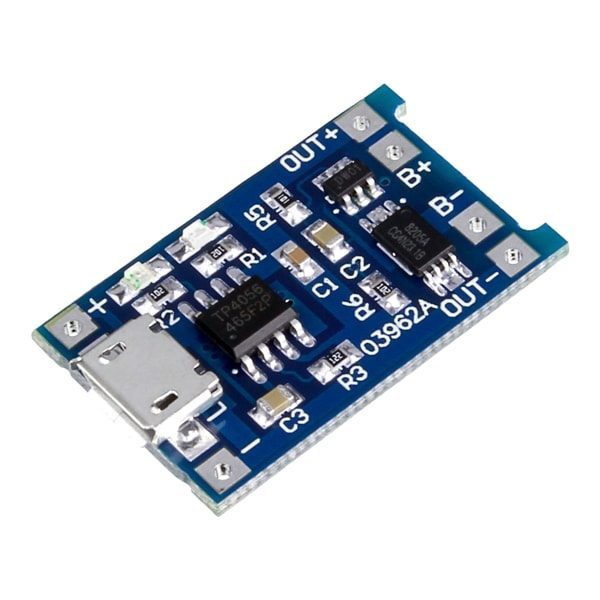

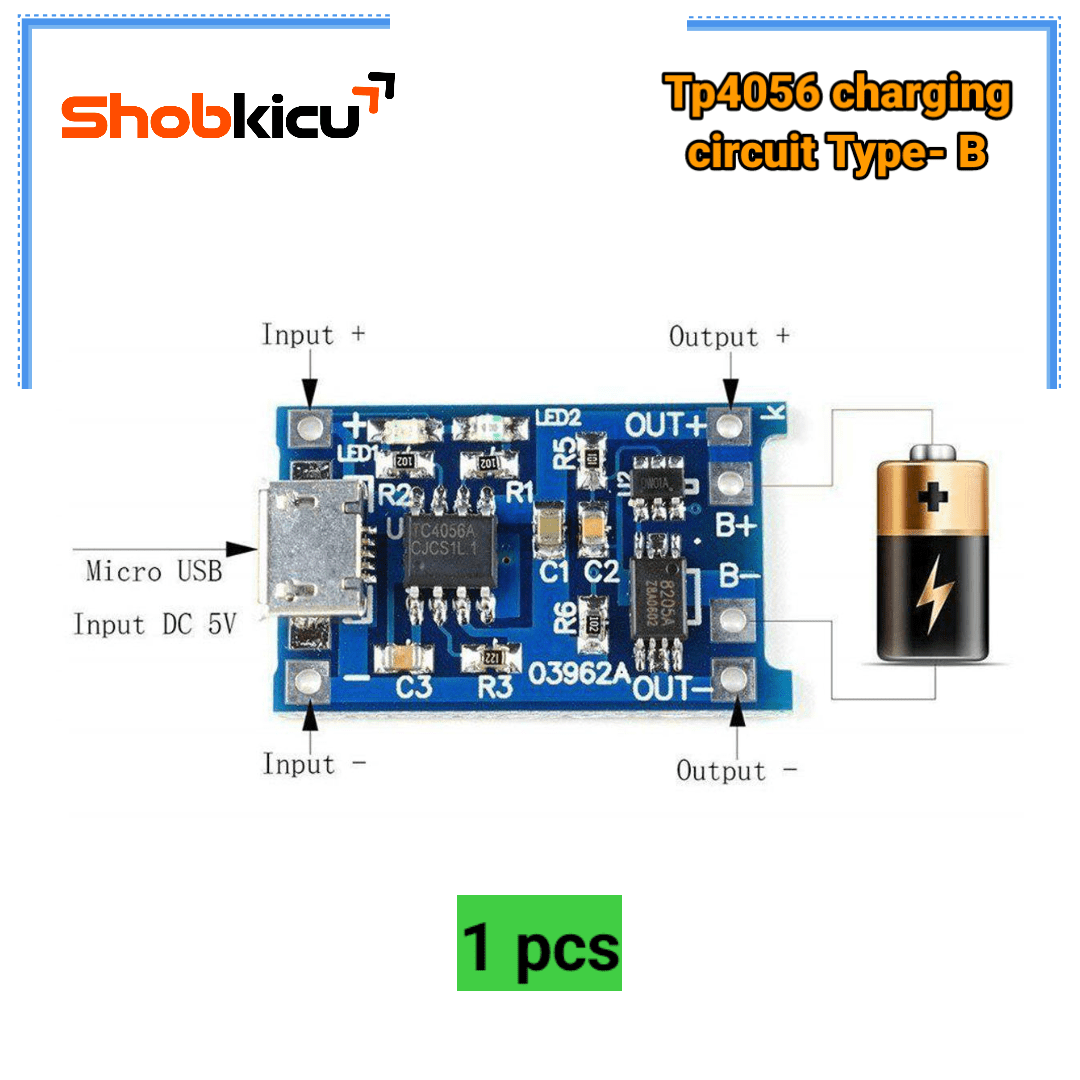

Tp4056 Type-B Lithium Battery Charging Module

Top highlights

• Input voltage: 5V
• Charging cut-off voltage: 4.2V ± 1%
• Maximum charging current: 1000mA
• The module is basically made for charging rechargeable lithium batteries using the constant current/constant voltage charging method.
• the module will cut output power from the battery if the discharge rate exceeds 3A or if a short-circuit condition occurs. Soft-start protection limits inrush current
