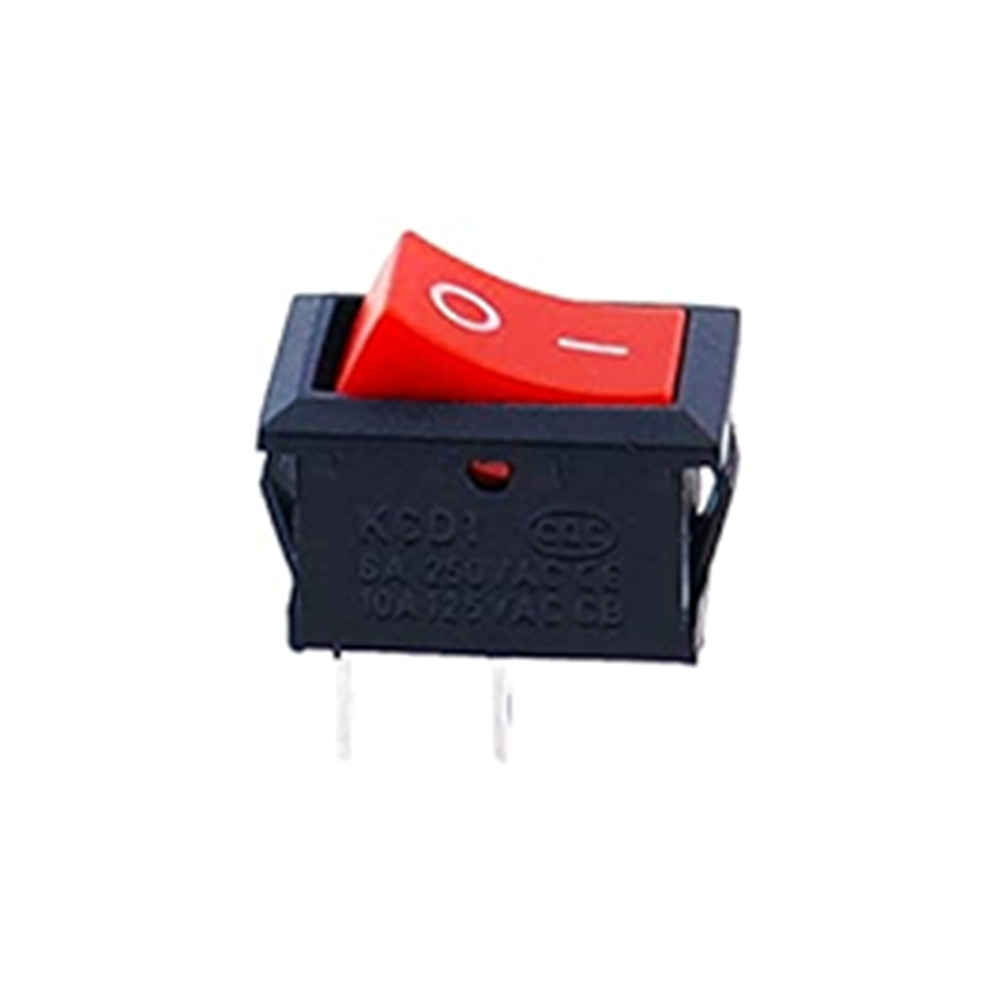

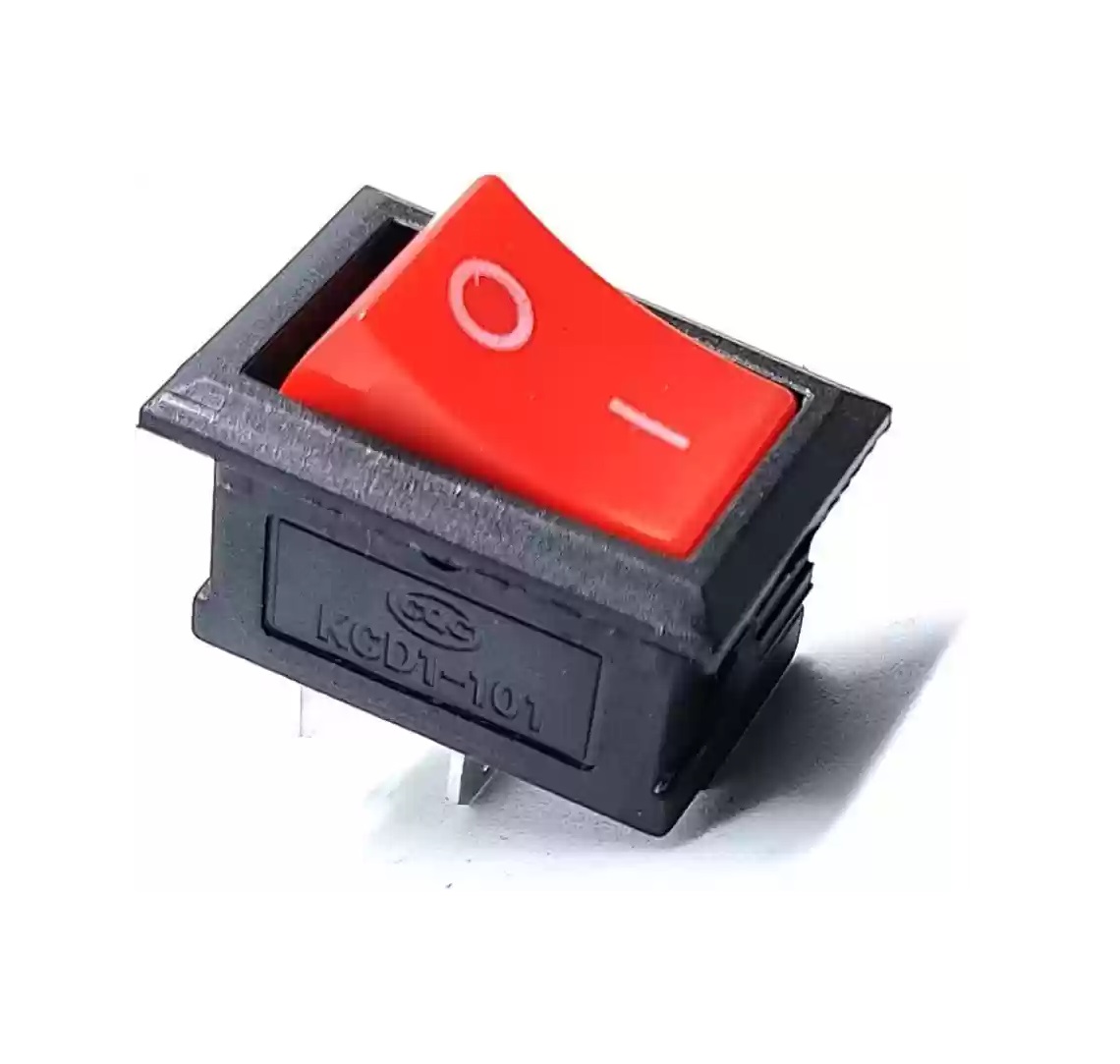

Rocker Switch KCD11 Power On Off Mini Switch Red Black-1pcs

Specification

• Max. rating current and voltage: 6A250VAC 10A 125VAC
• Contact resistance: ≤50mΩ
• Insulate resistance:≥1,000MΩ
• Dielectric strength: 1, 500V;
• Electronic life (cycles): ≥ 10,000
• Shape: Arc-Shaped
• Indication voltage: 2V, 6V, 12V, 24V
• Cap colors: red (R)
• Poles: SP, DP

Description

This is a miniature size switch. It has 2 pins, one is used for input and the other one is used as output. The color of this switch is shiny red and black. It can withstand high room temperature. The switch offers simple on/off switching. The switch is built from high plastic material which gives the switch strength and hardness. The wear and tear properties are also very high. It can work for longer durations. The life cycle continues for approximately 10,000 clicks. It has a simple O and I indication for your help.
